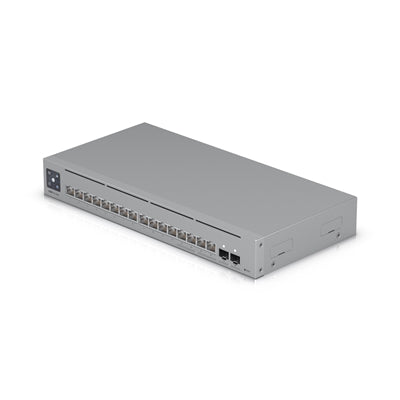

Ubiquiti USW-PRO-MAX-16 UniFi Pro Max 16 Port Gigabit Layer 3 Managed Non-POE Switch

A 16-port, Layer 3 Etherlighting switch 2.5 GbE and versatile mounting options.

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network

(4) 2.5 GbE RJ45 ports
(12) GbE RJ45 ports
(2) 10G SFP+ ports
Versatile desktop, wall, and rack mounting (optional rack mount kit required)
Silent, fanless cooling system

Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight
1.95 kg (4.3 lb)

Enclosure Material
SGCC steel

Management Interface
Ethernet In-Band

Networking Interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports

Total Non-Blocking Throughput
42 Gbps

Switching Capacity
84 Gbps

Forwarding Rate
62.496 Mpps

Power Method
Type-C adapter

Power Supply
5V, 25W

Max Power Consumption
25W

LCM Display
(1) 1.3" touchscreen

Button
Factory Reset

Ambient Operating Temperature
-5 to 40 C (23 to 104 F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
