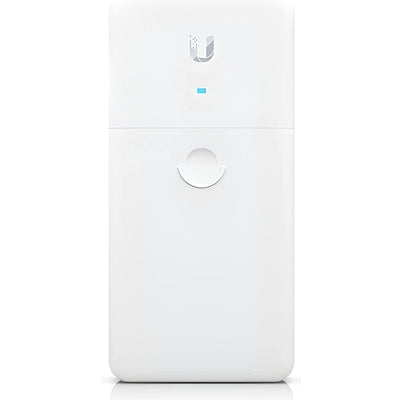

Ubiquiti UACC-LRE Long-Range Ethernet Repeater

The Ubiquiti UACC-LRE 1-Port Long-Range PoE+ Extender is gigabit adapter that allows you to easily and inexpensively expand your ethernet network's range. With its two (2) GbE RJ45 ports, the UACC LRE can receive 802.3at PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40C to 80C) to protect your deployment from weather and electrical damage.

Specifications

Mechanical

Dimensions
196.5 x 93.5 x 39 mm ( 7.7 x 3.7 x 1.5 inch)

Weight
350 g (12.3 oz)

Enclosure material
UV stabilised polycarbonate

Mounting material
Stainless steel

Weatherproofing
IPX5

Hardware

Networking interfaces
GbE RJ45 ports

Power method
802.3at PoE+ 2-pairs (pins 1, 2+; 3, 6-)

Max power consumption (excluding PoE out)
1.5W

Voltage range
37 to 57VDC

PoE interfaces
Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)

ESD/EMP protection
Air/contact: 30kV

DC sparkover voltage
90V at 100V/s

Max. impulse sparkover voltage
700V at 1kV/s

Discharge current
10kA+

Modes
Long-range indoor
Outdoor ethernet repeater

Operating temperature
-40 to 80C (-40F to 176F)

Operating humidity
10 - 95% non-condensing

Certifications
CE, FCC, IC

LEDs

System
Blue: power ON

Ethernet
Green: 1 Gbps, Amber: 10/100 Mbps

PoE
Amber: passthrough PoE out
