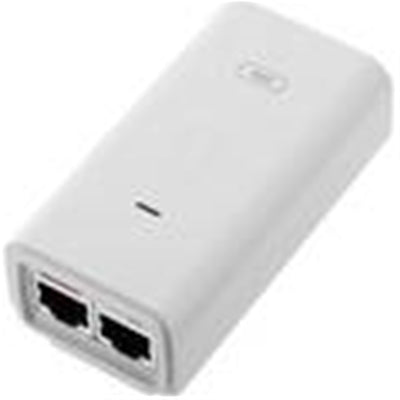

Ubiquiti POE-24-12W-WH 24V 12W Fast Ethernet PoE Injector White

Ubiquiti Networks POE-24-12W-WH brand adapter and injector. Compatible with most PoE devices

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices including
? airFiber
? airMAX
? EdgeMAX
? mFi
? UniFi AP
? UniFi Protect / airVision
? UniFi LED
? UFiber
* Check product specifications to verify PoE compatibility.

Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber?s local network to the WISP network.

The airGateway is available in three models
? airGateway Standard model with an internal antenna
? airGateway Pro Dual-Band Wi-Fi model with an internal antenna
? airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

The airGateway plugs into any of these PoE Adapters
POE-15-12W
POE-24-12W
POE-24-12W-G - airGateway maximum LAN port speed: 100 Mbps
POE-24-7W-G-WH - airGateway maximum LAN port speed: 100 Mbps
POE-24-12W-G-WH - airGateway maximum LAN port speed: 100 Mbps

Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices
? Surge protection
? Clamping protection
? Maximum surge discharge
? Peak pulse current
? AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable, and TOUGHCable Connectors.

Specifications

Number of Ethernet LAN ports (RJ45)
1 x input for Ethernet
1 x output that incorporates Ethernet together with the electrical current

Power over Ethernet (PoE)
24 V at 0.5A with maximum consumption of 12W

Input voltage
90 - 260.

Power over Ethernet (PoE)
Yes

AC connector
IEC-320 C6

Industry standard compliances
IEC 60950-1: 2005 + A1, UL60950-1, EN55022: 2010, EN55024: 2010. FCC Class B

Weight & Dimensions
Product size (width x depth x height) 4.6 x 8.9 x 3.3 cm
Gross Weight 1.0 kg
