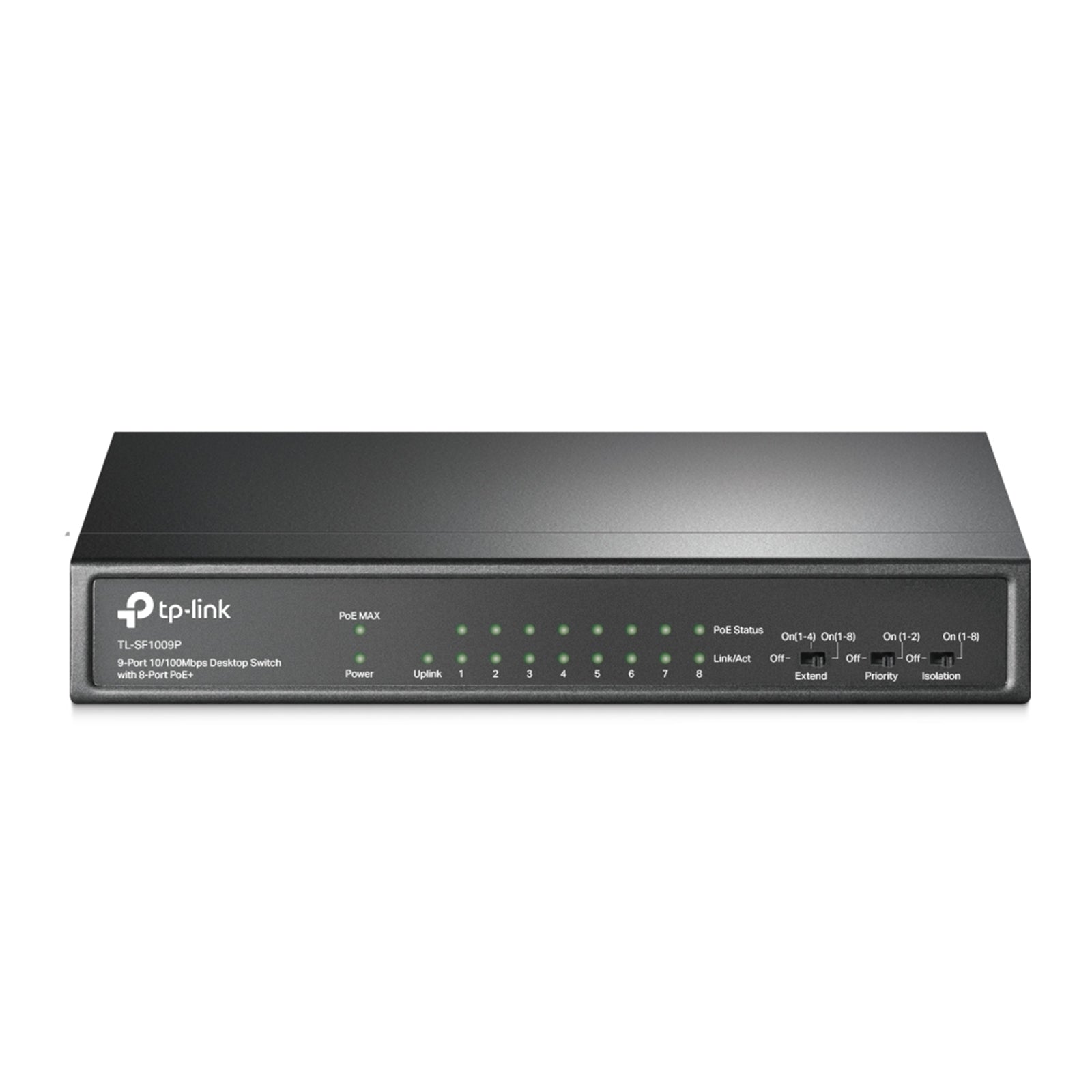

TP-Link TL-SF1009P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+ Switch
TP-Link TL-SF1009P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+ Switch
SKU: NPTPL-TLSF1009P
Regular price
£60.64 GBP
Regular price
Sale price
£60.64 GBP
Unit price
per
Couldn't load pickup availability
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 8 PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance ?Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**?perfect for IP Camera deployment in large areas.
Ideal for IP Surveillance ?Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port?s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
Specifications
HARDWARE FEATURES
Interface:
? 9x 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
? AUTO Negotiation
? AUTO MDI/MDIX
Network Media:
? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
? EIA/TIA-568 100O STP (maximum 100m)
? 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
? EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity:
Fanless
Physical Security Lock:
Yes
External Power Supply:
External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate:
1.3392 Mpps
PoE Ports (RJ45):
? Standard: 802.3 af/at compliant
? PoE Ports: Ports 1?8
? Power Supply: 65 W
Mac Address Table:
2K
Jumbo Frame:
2 KB
Switching Capacity:
1.8 Gbps
Dimensions ( W x D x H ):
6.7 3.9 1.1 in (171 98 27 mm)
Max Power Consumption:
? 3.6 (220/50 Hz, no PD connected)
? 77.08 (220/50 Hz, with 65 W PD connected)
Max Heat Dissipation:
? 12.28 BTU/h (no PD connected)
? 262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method:
Store-And-Forward
Advanced Functions:
? Compatible With IEEE 802.3af/at Compliant PDs
? Extend Mode Button (Ports 1?4 and Ports 1?8, Up to 250 m PoE power supply and data transmission)
? Priority Mode Button (Ports 1?2)
? Isolation Mode Button (Ports 1?8)
? Mac Address Auto-Learning and Auto-Aging
? IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification:
FCC, CE, RoHS
Package Contents:
? TL-SF1009P
? Power Adapter
? Installation Guide
