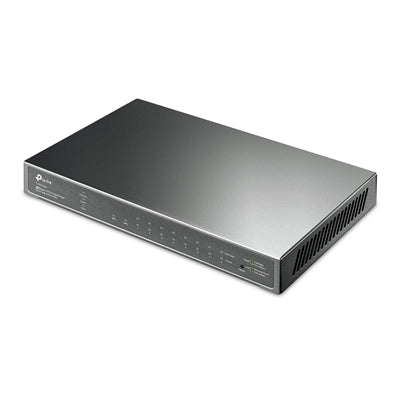

TP-Link Omada TL-SG2210P JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Key Features
61 W PoE Budget: 8x 802.3af/at-compliant PoE+ ports with a total power supply of 61 W.
Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

Software Defined Networking (SDN) with Cloud Access
Omada?s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network?all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface
8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity
Fanless

Power Supply
100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)

Power Supply
10.3 W (220 V/50 Hz) (no PD connected)
76.5 W (220 V/50 Hz) (with 61 W PD connected)

PoE Ports (RJ45)
Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 61 W

Dimensions ( W x D x H )
8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

Mounting
Desktop/Wall Mounting

Max Power Consumption
V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected)

Max Heat Dissipation
V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected)

PERFORMANCE

Switching Capacity
20 Gbps

Bandwidth/Backplane
20 Gbps

Packet Forwarding Rate
14.88 Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9 KB

SOFTWARE FEATURES

Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow based Rating Limit
Smoother Performance
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features
16 IP Interfaces
Support IPv4/IPv6 Interface
Static Routing
32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Flow-Based
Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

VLAN
VLAN Group
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN

Access Control List
Support up to 230 entries
Time-Range
Time Slice
Week Time-Range
Absolute Time-Range
Holiday
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
IP Protocol
TCP Flag
TCP/UDP Source Port
TCP/UDP Destination Port
DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
Permit/Deny
Policy Action
Mirror
Rate Limit
Redirect
QoS Remark
ACL Rules Binding
Port Binding
VLAN Binding
Actions for flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

Security
AAA
802.1X
Port based authentication
MAC (Host) based authentication
Authentication Method includes PAP/EAP-MD5
MAB
Guest VLAN
Support Radius authentication and accountability
IP/IPv6-MAC Binding
512 Binding Entries
DHCP Snooping
DHCPv6 Snooping
ARP Inspection
ND Detection
IP Source Guard
253 Entries
Source IP+Source MAC
IPv6 Source Guard
183 Entries
Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with Lv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

IPv6
IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes (Through OC300, OC200, or Omada Software Controller)

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)

Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

OTHERS

Certification
CE, FCC, RoHS

Package Contents
TL-SG2210P
Power Adapter
Installation Guide
Rubber Feet

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
