TP-LINK

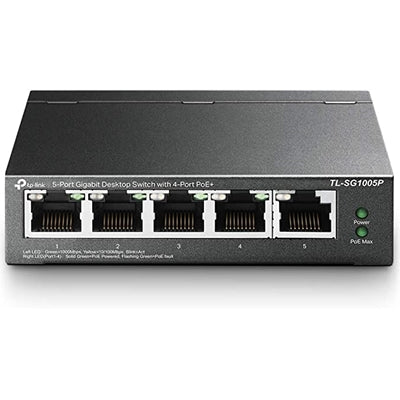

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
SKU: NPTPL-TLSG1005P
Regular price
£56.93 GBP
Regular price
Sale price
£56.93 GBP
Unit price
per
Couldn't load pickup availability
Professional High-Power 5-Port Gigabit Switch with 4 PoE+ Ports - plug and play
Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 4 x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play
No Configuration Required
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port?s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
QoS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.
Key Features
5 x 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports
Requires no configuration and installation
Specifications
Interface
5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1?4
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
16 KB
Switching Capacity
10 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x1.0 in (99.8 x 98 x25 mm)
Max Power Consumption
4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store-And-Forward
Certification
FCC, CE, RoHS
Package Contents
TL-SG1005P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0?40 degrees (32?104 C)
Storage Temperature: -40?70 degrees (-40?158 C)
Operating Humidity: 10?90% RH non-condensing
Storage Humidity: 5?90% RH non-condensing
