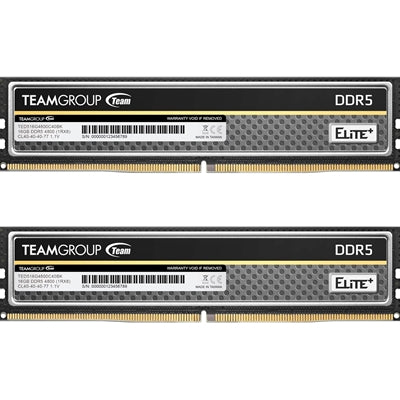

Team Elite Plus TPBD532G4800HC40DC01 32GB DIMM System Memory, DDR5, 4800MHz, 2 x 16GB, 288 Pin, 1.1v, CL40-40-40-77
Team Elite Plus TPBD532G4800HC40DC01 32GB DIMM System Memory, DDR5, 4800MHz, 2 x 16GB, 288 Pin, 1.1v, CL40-40-40-77
SKU: SDTEA-T32G4800HC
Regular price
£88.01 GBP
Regular price
Sale price
£88.01 GBP
Unit price
per
Couldn't load pickup availability
-
Team Elite Plus TPBD532G4800HC40DC01 32GB DIMM System Memory, DDR5, 4800MHz, 2 x 16GB, 288 Pin, 1.1v, CL40-40-40-77
The trend-leading TEAMGROUP ELITE PLUS DDR5 is launched with the first 6,000MHz high-frequency modules compatible with Intel and AMD?s DDR5 platforms. The optimized structure, 1.1V low operating voltage, and On-die ECC error correctionmechanism unleash exceptional performance for effortless
multitasking functions. The symmetric heat sink cooling fin made through special processing features scratch-resistant, acid-resistant, anti-corrosion, and nonconductive properties, providing the memory module with comprehensive
protection to secure stable and reliable operating performance.
Features
?Simple design and comprehensiveprotection
?Frequency further enhanced forupgraded performance
?Effective power system configurationwith low voltage for power reduction
?Transcend capacity limit with diverseupgrade options
?Optimized structure with exceptionalaccess efficiency
?On-die ECC mechanism for enhanceddata transmission stability
Simple design and comprehensive protection
Symmetrical heat sink exclusively designed for ELITE PLUS DDR5. Through special processing, the heat sink in plain design is equipped with properties including scratch resistance, acid resistance, anti-corrosion, and non-conduction, offering comprehensive protection for the DDR5 memory module.
Frequency further enhanced for upgraded performance
The initial launch of the 6000MHz module increased performance by over 50% from that of the DDR4 with a 3200MHz limit. The enhanced speed enables upgraded high-performance operation quality.
Effective power system configuration with low voltage for power reduction
The standard operating voltage of DDR5 is 1.1V, compared with the 1.2V required for DDR4, it reduces the power consumption of bandwidth units and computer loading. In addition, the DDR5 module is equipped with a power management IC for enhanced power system configuration, enhanced transmission quality, and reduction of noise interference to the minimum.
Transcend capacity limit with diverse upgrade options
ELITE PLUS DDR5 comes with a complete range of sing-channel and dual-channel specifications from 8GB to 32GB. In line with JEDEC standards, a single memory can be up to 128GB, exceeding the limit of user memory capacity for smooth multitasking experiences.
Optimized structure with exceptional access efficiency
The structure of the DDR5 module, compared with that of DDR4, has increased the number of banks from 16 to 32. The minimal burst length is increased from 8 folds to 16 folds. It can process doubled data volume in the same amount of time, which is key to improving operational efficiency.
On-Die ECC mechanism for enhanced data transmission stability
DDR5 memory module supports On-die ECC error correction. It can repair DRAM units through its built-in functions to reduce the risk of data errors, offering enhanced stability to systems that adopt ELITE PLUS DDR5.
Compatible with DDR5 platforms of Intel and AMD systems
ELITE PLUS DDR5 is compatible with the DDR5 platforms of Intel and AMD systems. Users can rest assured in choosing the best option for an upgrade.
Memory Size
32GB (2x16GB)
Memory Type
DDR5
Module Type
DIMM
Memory Speed
4800MHZ (PC5 38400)
Pin Configuration
288
Error Correction
-
CL-tRCD-tRP-tRAS
CL40-40-40-77
DRAM Density
-
Data transfer bandwidth
38,400 MB/s
(PC5 38400)
Heat Sink
/
Working voltage
1.1V
Dimensions
32(H) x 134(L)mm
Warranty
Lifetime warranty
