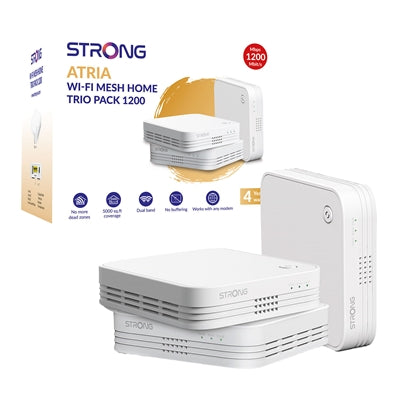

Strong MESHTRI1200UK AC1200 Whole Home Wi-Fi Mesh System (3 Pack) - 5,000sq.ft Coverage

Using state-of-the-art Easy Mesh? solution, STRONG?s Wi-Fi Mesh Home Trio Pack 1200 combines Mesh technology with the powerful 802.11ac MU-MIMO Wi-Fi standard for ultimate speed and coverage at home. This package of 3 ATRIA Mesh Extender 1200 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 1200 Mbit/s with coverage up to 450 m. The installation is extremely easy with no configuration and requires no expertise; the kit is ready to use. You simply connect one Mesh Extender 1200 to your existing modem via an Ethernet port and then position the second Mesh Extender 1200 in the room of your choice. Depending on the size of your house, you can add up to 3x additional Mesh Extender 1200 (up to 6x Mesh Extender 1200 cover an area of up to 900 m). Manage your Wi-Fi Mesh network at a finger touch with the STRONG App available for Android and iOS devices.

Technical specifications

WI-FI

Frequency
2.4 GHz and 5 GHz concurrent

Signal Rate
5 GHz: Up to 867 Mbit/s
2.4 GHz: Up to 300 Mbit/s

Security
WPA/WPA-PSK & WPA2/WPA2-PSK

Antenna
4x internal antennas

Transmit Power
Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

Supported Channels
5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112
2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13

WIFI Standards
IEEE 802.11ac/n/g/b/a, IEEE 802.11d, IEEE 802.11h, IEEE 802.11e, IEEE 802.11i

HARDWARE

Main Chipset
RTL8197FS

Wi-Fi Chipset
RTL8812FR for 5GHz

Ethernet Ports
3x 10/100/1000M WAN/LAN ports (Auto MDI/MDIX)

Buttons
Connect & Secure (WPS), Reset

LEDs
Power, WAN, Pairing

Power
External power supply, 12 V/1 A DC

Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

SOFTWARE

Basic Network
DHCP, DNS, IGMP v1/v2, NAT, IPV4/V6, WDS, WPS, WMM

Management
Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log

Internet Protocol
IPv4/V6

STRONG Mesh app
Android and iOS downloadable app to manage the Wi-Fi Mesh network

INTERNET SERVICES

Easy MESH Support
Automatically Organized Network
Auto Configuration
Seamless Roaming
Auto MESH Routing
Auto Healing (Redundancy and Fail-over)
Intelligent roaming (Dynamic management of clients and clients frequency bands)
Multiple access point architecture (up to 6x Mesh Extender 1200)
Only one Wi-Fi name all over the house (configuration sharing)

OTHER SPECIFICATIONS

Certification
CE

Power consumption per unit
< 8W

System requirements
Internet Browser

OTHERS

Package contents
3x Mesh Extender 1200
3x Power Supply Units (12 V/1 A DC)
1x CAT5E Ethernet Cable
1x Installation Instructions, Warranty Card

ENVIRONMENT

Operating Temperature
0 C~+45 C

Storage temperature
-20 C~+70 C

Operating humidity
10%~90% non-condensing

Storage humidity
10%~90% non-condensing

Dimensions (WxDxH) per unit
13013030 mm

Weight per unit
~220 g
