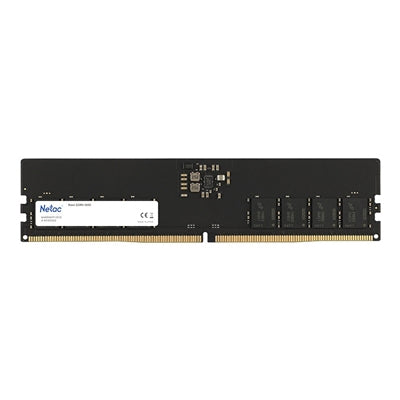

Netac NTBSD5P56SP-16 16GB DIMM System Memory, DDR5, 5600MHz, 1 x 16GB, 288 Pin, 1.35v, CL46-45-45-90 Bulk Packed

Netac NTBSD5P56SP-16 16GB DIMM System Memory, DDR5, 5600MHz, 1 x 16GB, 288 Pin, 1.35v, CL46-45-45-90 Bulk Packed
Netac Unbuffered DDR5 SDRAM DIMMs (Unbuffered Double Data Rate Synchronous DRAM Dual In-Line Memory Modules)are low power, high-speed operation memory modules that use DDR5 SDRAM devices. Each 288- pin DIMM uses gold contact fingers. The SDRAM Unbuffered DIMM is intended for use as main memory when installed in systems such as PCs.

Features
DRAM VDD/VDDQ = 1.1V Typical / DRAM VPP = 1.8V Typical / VDDSPD = 1.8V to 2.0V
32 Bank with x4/x8 / 16 Bank with x16
8 BG(Bank Group) for X4/X8/X16 configurations
BL16, BC8 OTF, BL32, BL32 OTF supported
Same Bank Refresh
Input Clock Frequency Change
Multi-Purpose Command (MPC)
Per DRAM Addressability (PDA)
Connectivity Test (CT) / ZQ Calibration
DFE (Decision Feedback Equalization) for DQ
DQS Interval Oscillator
On-Die ECC
CRC (Cyclic Redundancy Check)
Package Output Driver Test Mode

Memory Capacity
16GB (1 x 16GB)

Memory Type
DDR5

Module Type
DIMM

Memory Speed
DDR5-5600MHz

Pin Configuration
288-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
46-45-45-90

Heat Sink
/

Working Voltage
1.1v
