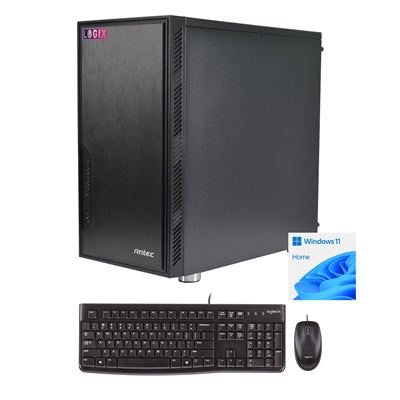

LOGIX Intel i7-12700 2.10GHz (4.90GHz Boost) 12 Core 20 threads. 16GB Kingston RAM, 1TB Kingston NVMe, Wi-Fi 6, Windows 11 Home + FREE Keyboard & Mouse - Full 3-Year Parts & Collection Warranty

The LOGIX AN-716WH is a super-powerful compact wired & wireless all-rounder home and business desktop PC, designed for all-day and all-night use, coping with even resource-hungry programs, 4K streaming, online gaming and school or business work with ease. With the option of Ethernet or superfast WiFi 6 connectivity, it provides a really fast, robust connection without interruption.

Featuring a powerful 12th Gen Intel i7 4.9GHz processor with 12 cores and 20 threads, Intel UHD graphics with 4K support, 16GB of fast DDR4 memory and a 1TB PCIe Gen4 NVMe SSD, it's a true workhorse, but it's been hand-built in the UK with all the care and attention of a custom-made PC, just without the flashing lights or even flashier pricetag.

It's built to be used all-day, reliably and, thanks to its modest size, sit discreetly on or under a desk, freeing up physical and mental space and allowing you to concentrate on the task(s) at hand.

.

Microsoft Windows 11 Home has been installed and updated, ready-to-go. It's bloatware free, no additional software is installed, so there's no spending hours removing programs and files you don't need that slow your PC down. We?ve even included a Logitech MK120 keyboard and optical mouse so you can get going straight away.

Built to the highest of standards and featuring world renowned brands, this PC is futureproofed and designed to last, which is why it comes with a full 3-year warranty. The World?s most popular operating system, Windows 11 Home, is preinstalled ? you just need to turn it on and follow the instructions in the Quick Start Guide ? Reliability and security built in.

Main Features:
Discreet Antec VSK 10 micro tower case that balances excellent cooling and near-silent operation for all-day use.
Powerful 12th Gen Intel Core i7 processor with 10 cores and 20 processing threads with speeds up to 4.90GHz.
Kingston Technology 16GB DDR4 memory (with space to expand your memory if you wish).
Kingston Technology 500GB PCIe 4.0 NVMe SSD, a superfast hard drive that will load programmes, open large files and transfer data much, much faster than a traditional mechanical hard drive.
3-year parts and collection warranty ? in the event that something goes wrong or breaks down, you?re covered and we?ll either collect and repair your computer, or send you a replacement part so you?re not without a computer.

Specification:

Operating System: Windows 11 Home
Processor: 12th Gen Intel Core i7-12700 2.1GHz (4.9GHz boost) 10-cores & 20 threads
Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4 ? additional memory slot available)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Storage Expansion: 2 x 3.5"/2.5" Combo & 2 x 2.5"
Graphics: Intel UHD Graphics 770
Motherboard: Gigabyte B760M DS3H AX Intel Socket 1700
Case: Antec VSK 10 micro tower
Connections:
Front ?
2 x USB 3.0
1 x HD Mic/Audio
Back:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPort
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Networking:
Wired: Realtek 2.5GbE LAN
Wireless: WiFi 6E 802.11ax
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years - parts and collection included (UK mainland only)

Processor
Intel Core i7 12700 2.10GHz 12 Core LGA 1700 Alder Lake Processor, 20 Threads, 4.90GHz Boost, Intel UHD 770 Graphics

Processor Cores
12

Processor Threads
20

Core Clock Speed
2.10GHz

Core Boost Speed
4.90GHz

Security & Reliability
Intel vPro Eligibility
Intel vPro Enterprise, Intel vPro Essentials

Intel Threat Detection Technology (TDT) : Yes
Intel Active Management Technology (AMT) : Yes
Intel Standard Manageability (ISM) : Yes
Intel One-Click Recovery : Yes
Intel Hardware Shield Eligibility : Yes
Intel Control-Flow Enforcement Technology : Yes
Intel Total Memory Encryption - Multi Key : Yes
Intel Total Memory Encryption : Yes
Intel AES New Instructions : Yes
Secure Key : Yes
Intel OS Guard : Yes
Intel Trusted Execution Technology : Yes
Intel Boot Guard : Yes
Intel Stable IT Platform Program (SIPP) : Yes

Memory
Kingston FURY Beast 16GB (2 x 8GB) 3200MHz DDR4 DIMM System Memory Black Heatsink
Voltage: 1.35V
Latency Timing: CL16
Speed: 3200MHz (PC4-25600)
2 x 8GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
2 x 8GB
4 Lanes (2 occupied)

SSD Drive
Kingston NV2 (SNV2S/1000G) 1TB NVMe M.2 Interface, PCIe Gen4 x4 2280 SSD, Read 3500 MB/s, Write 2100 MB/s
Data storage life
320 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 3500MB/S
Write: Up to 2100MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.50 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader
No Card Reader Fitted

Networking
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi 6E 802.11ax

Power Supply
CRONUS 500ATV FX PRO 500W PSU, 140mm Silent Cooling Fan, 80 PLUS Bronze, Non Modular, Flat Black Cables
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e

Motherboard
Gigabyte B760M DS3H AX DDR4 Motherboard, Intel Socket 1700, 12th/13th Gen, 1x PCIe 4.0 x16, 2 x PCIe 4.0 M.2, Micro ATX, USB Type-C, 2.5GbE LAN, Wi-Fi 6E 802.11ax, HDMI, DisplayPort, Smart Fan 6, Q-Flash Plus

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rear I/O
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Chassis
Antec VSK 10 Micro Tower 2 x USB 3.0 Black Case

Drive Bays
5.25": 0
3.5"/2.5" Combo: 2
2.5": 2

IO Ports
2 x USB 3.0
HD Mic/Audio
Power
Reset

Cooling
Cooling Front:1 x 92 mm front intake fan (optional)
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm (1 x 120mm fan included)

Dimensions
405 x 205 x 400 mm

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
