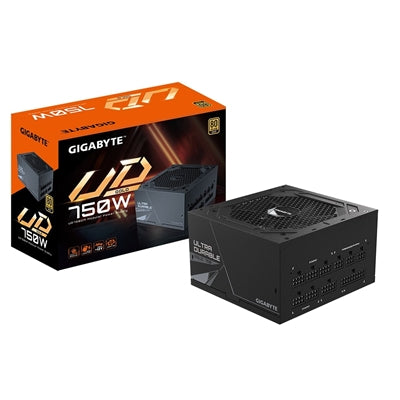

Gigabyte UD750GM 750W 80 PLUS Gold Fully Modular Power Supply, Active PFC, 120mm Rifle Bearing Fan, ATX12V/EPS Compliant - 5 Year Warranty.

The Gigabyte GP-UD750GM is a high-performance power supply unit designed to meet the needs of demanding PC builds. It features a fully modular design, 80 PLUS Gold certification, and a range of protective measures to ensure reliable and efficient power delivery.

Key Features

Ultra Durable Design Incorporates high-quality Japanese capacitors for enhanced reliability and performance.
Enhanced Thermal Solution Equipped with a 120mm smart hydraulic bearing (HYB) fan for optimal cooling.
Comprehensive Protection Includes OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection).
80 PLUS Gold Certified Ensures high energy efficiency, reducing electricity costs and heat output.
Fully Modular Design Allows for easy cable management and a cleaner build.
Powerful Single +12V Rail Provides stable and reliable power to all components

Specifications

Type
Intel Form Factor ATX 12V v2.31

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
12-6A

Input Frequency
50-60 Hz

Output Capacity
750W

Fan Type
120mm smart hydraulic bearing (HYB) fan

Efficiency
90% at typical load

MTBF
100,000 hours

Protection
OVP, OPP, SCP, UVP, OCP, OTP

Certifications
80 PLUS Gold

Dimensions
150 x 140 x 86 mm

Weight
1.4 kg

Connectors
1 x 24-pin ATX
2 x 4+4-pin CPU
4 x 6+2-pin PCIe
8 x SATA
3 x 4-pin Molex
1 x Floppy

Warranty
The Gigabyte GP-UD750GM comes with a 5-year warranty, ensuring peace of mind and long-term reliability

This power supply unit is ideal for gamers, content creators, and professionals who require a stable and efficient power source for their high-performance systems
