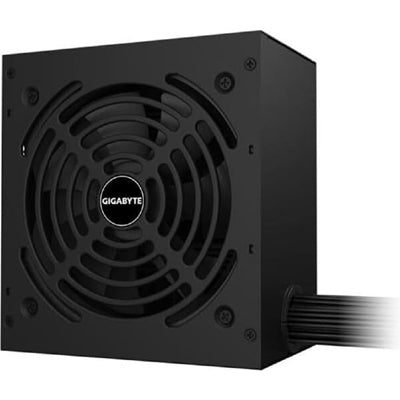

Gigabyte P650G PG5 650W ATX 3.1 Fully Modular Power Supply Unit, 80 Plus Gold Efficiency, PCIe 5.1 12VHPWR Connector, Gaming PC PSU
Gigabyte P650G PG5 650W ATX 3.1 Fully Modular Power Supply Unit, 80 Plus Gold Efficiency, PCIe 5.1 12VHPWR Connector, Gaming PC PSU
SKU: PSGIG-GPP650GPG5
Regular price
£64.47 GBP
Regular price
Sale price
£64.47 GBP
Unit price
per
Couldn't load pickup availability
The GIGABYTE P650G PG5 (MPN: GP-P650G PG5) is a fully modular, high-efficiency ATX 3.1 power supply designed for modern desktop systems including next-gen graphics support via a native PCIe Gen 5.1 16-pin connector. With 80 PLUS Gold efficiency, a 120 mm hydraulic bearing fan, and comprehensive protection features, it delivers reliable power and quiet operation backed by solid build quality and long-term reliability.
Key Features
Continuous Power: 650W
Efficiency: 80 PLUS Gold (?90% typical efficiency)
Compliance: ATX 3.1 ready, PCIe Gen 5.1 support
PCIe Support: 1 x PCIe Gen 5.1 16-pin (12VHPWR) delivering up to 300W plus 2 x 6+2-pin PCIe connectors
Rail Design: Single powerful +12V rail
Cooling: 120mm HYB (Hydraulic Bearing) fan with adaptive speed control
Topology: Standard ATX switching design with quality components (Japanese capacitors)
Modularity: Fully modular all-black flat cables
Warranty: Region-dependent (typically 5 years)
Full Technical Specification
Model / MPN:
P650G PG5 (GP-P650G PG5)
Form Factor:
ATX 12V v3.1 (Intel Form Factor)
Power Output:
650W continuous
Efficiency Rating:
80 PLUS Gold (approx. =90% efficiency at typical load)
Input Voltage:
100?240 VAC
Input Frequency:
50?60 Hz
Input Current:
~10?6 A
Power Factor:
Active PFC (>0.9 typical)
Operating Temperature:
Standard operating range (up to ~40C) ? typical for ATX PSU class
MTBF:
100,000 hours
Protections:
OVP, OPP, SCP, UVP, OCP, OTP
Power Good Signal:
100?150 ms
Hold-up Time:
17 ms
Fan:
120mm HYB (Hydraulic Bearing) fan with intelligent speed control
Noise Levels:
Designed for low noise under typical loads
Modularity:
Fully modular all-black flat cables
Cable Length:
Optimised for mid-tower and full-tower systems
Connectors:
1 x 20+4-pin ATX main power
1 x 4+4-pin CPU (EPS)
1 x 16-pin PCIe Gen 5.1 (12VHPWR)
2 x 6+2-pin PCIe
6 x SATA power
3 x 4-pin peripheral (PATA)
Dimensions:
150 x 140 x 86 mm (W x D x H)
Warranty:
5 years
Key Features
Continuous Power: 650W
Efficiency: 80 PLUS Gold (?90% typical efficiency)
Compliance: ATX 3.1 ready, PCIe Gen 5.1 support
PCIe Support: 1 x PCIe Gen 5.1 16-pin (12VHPWR) delivering up to 300W plus 2 x 6+2-pin PCIe connectors
Rail Design: Single powerful +12V rail
Cooling: 120mm HYB (Hydraulic Bearing) fan with adaptive speed control
Topology: Standard ATX switching design with quality components (Japanese capacitors)
Modularity: Fully modular all-black flat cables
Warranty: Region-dependent (typically 5 years)
Full Technical Specification
Model / MPN:
P650G PG5 (GP-P650G PG5)
Form Factor:
ATX 12V v3.1 (Intel Form Factor)
Power Output:
650W continuous
Efficiency Rating:
80 PLUS Gold (approx. =90% efficiency at typical load)
Input Voltage:
100?240 VAC
Input Frequency:
50?60 Hz
Input Current:
~10?6 A
Power Factor:
Active PFC (>0.9 typical)
Operating Temperature:
Standard operating range (up to ~40C) ? typical for ATX PSU class
MTBF:
100,000 hours
Protections:
OVP, OPP, SCP, UVP, OCP, OTP
Power Good Signal:
100?150 ms
Hold-up Time:
17 ms
Fan:
120mm HYB (Hydraulic Bearing) fan with intelligent speed control
Noise Levels:
Designed for low noise under typical loads
Modularity:
Fully modular all-black flat cables
Cable Length:
Optimised for mid-tower and full-tower systems
Connectors:
1 x 20+4-pin ATX main power
1 x 4+4-pin CPU (EPS)
1 x 16-pin PCIe Gen 5.1 (12VHPWR)
2 x 6+2-pin PCIe
6 x SATA power
3 x 4-pin peripheral (PATA)
Dimensions:
150 x 140 x 86 mm (W x D x H)
Warranty:
5 years
