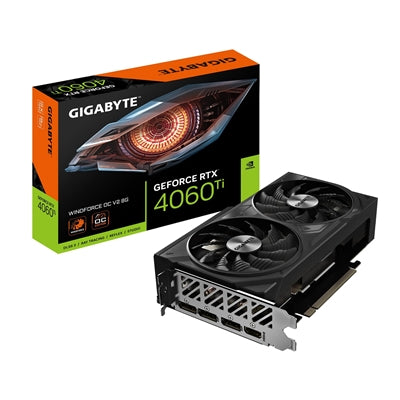

Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC V2 8G Graphics Card, 8GB GDDR6, 4352 CUDA Cores, 2550 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Port
Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC V2 8G Graphics Card, 8GB GDDR6, 4352 CUDA Cores, 2550 MHz Core Clock, Dual Fan, 3x DisplayPorts / 1x HDMI Port
SKU: GRGIG-N4060TWO82
Regular price
£407.60 GBP
Regular price
Sale price
£407.60 GBP
Unit price
per
Couldn't load pickup availability
GeForce RTX 4060 Ti WINDFORCE OC V2 8G
Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
Protection back plate
CORE CLOCK
2550 MHz (Reference Card: 2535 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
Specification
Graphics Processing
GeForce RTX 4060 Ti (8GB)
Core Clock
2550 MHz (Reference Card: 2535 MHz)
CUDA Cores
4352
Memory Clock
18 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital Max Resolution
7680x4320
Multi-View
4
Card Size
L=201 W=122 H=48 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin x 1
Output
DisplayPort 1.4a x 3
HDMI 2.1a x 1
Accessories
Quick guide
