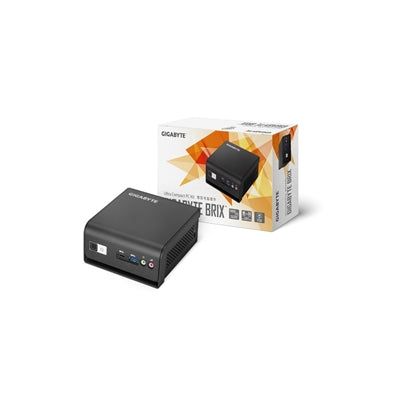

Gigabyte BRIX GB-BMPD-6005 Barebone Kit, Intel Pentium Silver N6005 2.0GHz Quad Core CPU,1 x DDR4 SO-DIMM Slot, 1 x M.2-2280 Slot, 1 x 2.5 Inch SATA III Bay, Wireless AC & Bluetooth 4.2

Intel Pentium Silver and Celeron Processor
BRIX use the newest Intel Pentium Silver and Celeron processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life.
BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing.
The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.

Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5 inch HDD/SSD as well.
It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.

DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface.
The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.

VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors.
It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor.
A gigabit ethernet speed up your internet/intranet connectivity.

SPECIFICATIONS

Dimension
56.22 mm x 103 mm x 116.52 mm (2.21inch x 4.06inch x 4.59inch)

Motherboard Size
105 x 110 mm

CPU
Intel Pentium Processor N6005
2.8GHz, 4 core (TDP 10W)

Memory
1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB

LAN
Gigabit LAN (Realtek 8111HS)

Wifi Card
Dual Band Wireless-802.11 AC

Graphics
Intel UHD Graphics 605

Audio
Realtek ALC255

HDMI Resolution (Max.)
HDMI2.0a
4096 x 2160 @ 60 Hz

Mini DP Resolution (Max.)
DP1.2a
4096 x 2160 @ 60Hz

Storage
Supports 2.5inch HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

Expansion Slots
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack

Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V
2.1A

VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm

Support OS
Win10 64bit

Environment
System Environment Operating Temperature: 0C to +35C
System Storage Temperature: -20C to +60C
