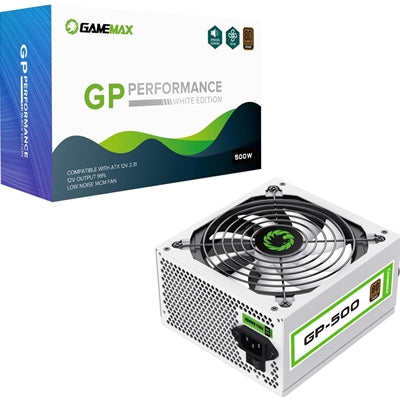

GameMax GP-500 500W 80 Plus Bronze Certified Power Supply Unit with Ultra Silent 140mm White Fan, High Efficiency, and Reliable Performance for Gaming and Office PCs

GameMax GP-500 500W 80+ Bronze Power Supply

The GameMax GP-500 power supply delivers reliable and efficient power for a range of system builds, whether it's a home office setup or a light gaming rig. With 80 Plus Bronze certification, it provides up to 85% efficiency, reducing power loss and improving performance. The unit is fully modular, allowing users to connect only the cables they need, resulting in cleaner, more efficient builds with better airflow.

Key Features:

80 Plus Bronze Certification ? Guarantees up to 85% efficiency under typical loads, minimizing power waste and enhancing overall energy savings.
Single +12V Rail ? Provides stable power delivery for high-performance components like modern CPUs and GPUs.
140mm Silent Fan ? Features smart thermal control to maintain effective cooling with minimal noise, ensuring quiet and efficient operation.
Flat White Cables ? Enhances aesthetics and simplifies cable routing, improving the overall look and airflow within your case.
Multiple Protections ? Equipped with Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Current Protection (OCP) to safeguard your components from damage.

Detailed Specifications:
AC Input:
100-240 VAC, 3.5-7A, 50-60Hz

DC Output:
+3.3V: 15A
+5V: 15A
+12V: 34A
-12V: 0.5A
+5VSB: 2.5A

Total Power:
500W

Efficiency:
Up to 85% at typical loads

Cooling:
140mm Silent Fan

MTBF:
Over 100,000 hours

Protection:
OVP, UVP, OPP, SCP, OCP

Certifications:
CE / FCC / CB / 80 Plus Bronze

Dimensions:
150mm x 85mm x 140mm (W x H x D)

Noise Level:
<25 dBA

Operating Temperature:
0C to 40C

Warranty:
2 year

Connections:
1 x 20+4 Pin Main Connector
1 x 4+4 Pin CPU 12V Connector
4 x SATA Connectors
3 x 4-Pin Molex Connectors
2 x 6+2 Pin PCI-e Connector

What's in the Box:
GameMax GP-500-WHT Power Supply
Modular Power Cables
Screws
User Manual
Cable Ties
The GameMax GP-500 is a versatile and efficient power supply, ideal for users who need reliable performance, easy cable management, and power protection for their PC builds
