DeepCool LS520 Premium AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2250RPM Cooling Fans, Addressable RGB LED Lighting, Fully Customizable Infinity Mirror Cap Design, Black Version
DeepCool LS520 Premium AiO Liquid CPU Cooler, Universal Socket, 240mm Radiator, PWM 2250RPM Cooling Fans, Addressable RGB LED Lighting, Fully Customizable Infinity Mirror Cap Design, Black Version
SKU: FADEE-LS520
Regular price
£104.91 GBP
Regular price
Sale price
£104.91 GBP
Unit price
per
Couldn't load pickup availability
LS520
Elite Performance

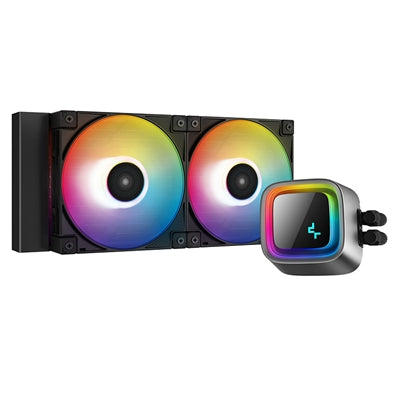

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A NEW ERA OF DEEPCOOL
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved Microchannel design ensures optimal coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.
3. Thick solid copper base with a seamless match.
COOL AND QUIET
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
- 500~2250 RPM* - Dynamic PWM Range
- 85.85 CFM - Supreme Airflow
- =32.9 dB (A) - Full Load Noise
- 50,000 Hours - Long Operational Lifespan
*The FC120 fans included on the LS series coolers feature different PWM range compared to retail models.
SIMPLE AND SECURE
Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms.
CUSTOMIZE YOUR LOOK
The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
SYNCHRONIZE YOUR SETUP WITH RGB LIGHTING EFFECTS
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects. A default Auto-RGB rainbow effect is enabled when no controller is detected allowing limited functionality on motherboards without 5V A-RGB headers.
Application For
Intel: LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155
AMD: sTRX4 / sTR4 / AM5 / AM4
Radiator Dimensions
282 x 120 x 27 mm
Radiator Material
Aluminum
Tube length
410 mm
Pump Dimensions
86 x 74 x 57 mm
Pump Speed
3100 RPM 10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.47 A
Pump Power Consumption
5.64 W
Fan Dimensions
120 x 120 x 25 mm
Fan Speed
500~2250 RPM 10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
=32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.29 A
Fan Power Consumption
3.48 W
LED Type
Addressable RGB LED
LED Connector
3-pin (+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.2 W (PUMP)/ 3.6 W (2 x FAN)
Net Weight
1305 g
