DEEPCOOL
Deepcool CH170 Digital Mini-ITX Case - High Airflow, Tempered Glass Side Panel, Supports Water Cooling, Ultra-Quiet Operation, Compact Design for Efficient Space Management
Deepcool CH170 Digital Mini-ITX Case - High Airflow, Tempered Glass Side Panel, Supports Water Cooling, Ultra-Quiet Operation, Compact Design for Efficient Space Management
SKU: CADEE-CH170
Regular price
£81.73 GBP
Regular price
Sale price
£81.73 GBP
Unit price
per
Couldn't load pickup availability
CH170 DIGITAL

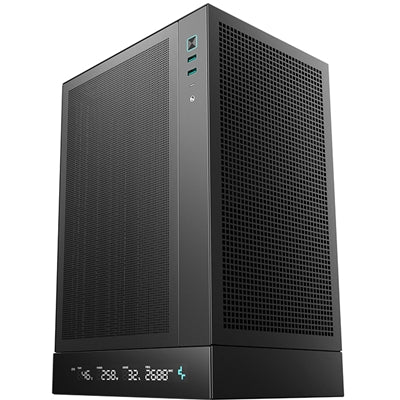

The CH170 DIGITAL is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for a number of different cooling and PSU options.
CH170 DIGITAL
The Tiny Tower of Power
HIGH AIRFLOW PANELS
Mesh panels surround the CH170 DIGITAL from every side and create a high-airflow, small-form-factor case like no other.
MULTIPLE DATA POINT DISPLAY
The CH170 DIGITAL has a digital base that displays four vital points of data, focusing on CPU, GPU, or PSU information at any given point in time. It can alternate between these modes at a regular interval.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL can support giant air coolers up to 172mm in height!
OR GO LIQUID
If liquid cooling is preferred, that is also an option with the CH170 DIGITAL. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.
NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable?no added GPU latency concerns!
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL makes everything a little easier.
Specifications
Materials
ABS+SPCC
Motherboard Support
Mini-ITX
Front I/O Ports
USB3.0 x 2
Audio x 1
Gen2 TypeC x 1
3.5" Drive Bays
1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three)
2.5" Drive Bays
1 x (2.5 SSD / 3.5 HDD / Front 120 FAN Choose one of the three)
Expansion Slots
3
Pre-Installed Fans
None
Fan Support
Top
1 x 120 mm
Rear
2 x 120 mm
Bottom
1 x 120 mm
Side
2 x 120 mm
Radiator Support
Side
240 mm
CPU Cooler Height Limit
172 mm
GPU Size Limit
Length
SFX/SFX-L: 305mm / ATX: 230mm
Height
138 mm
Width
65mm (3 Slots)
Power Supply Type
ATX PS2(maximum length: 140mm)/ SFX / SFX-L
Product Dimensions
380 x 200 x 250 mm (LxWxH)
Net Weight
3.4KG
