Antec GSK ATX3.1 750W Power Supply - 80 PLUS Gold, Full Modular, PCIe 5.1, JP Capacitors, Zero RPM Manager, 7-Year Warranty

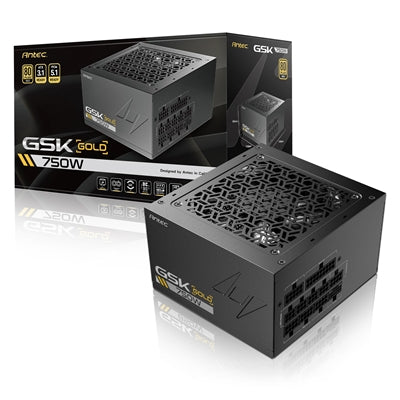

Antec GSK ATX3.1 750W Power Supply

The Antec GSK ATX3.1 750W Power Supply is designed to deliver exceptional performance and stability for gaming and enthusiast systems. With advanced features like ATX 3.1 compliance, PCIe 5.1 compatibility, and high-quality JP capacitors, this power supply ensures reliable and efficient power delivery. The 80 PLUS Gold certification guarantees high energy efficiency, reducing energy consumption and lowering electricity bills.

Highlight Features:

ATX 3.1 & PCIe 5.1 Compatible: Certified for ATX 3.1 compliance and includes a PCIe 5.1 12V-2x6 GPU cable for compatibility with the latest graphics cards, such as the NVIDIA GeForce RTX 40 Series.

High-Quality JP Capacitors: Ensures tight voltage regulation and minimal ripple and noise for maximum system performance.

PhaseWave? Design: Server-class LLC design with synchronous rectification based on a DC-DC topology for unparalleled power delivery efficiency and stability.

CircuitShield? Protection: Includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO protections for safe and reliable power delivery.

120mm FDB Silent Fan: Fluid-dynamic bearing fan provides high airflow with quiet operation and long-lasting durability.

Zero RPM Manager: Advanced thermal control that activates the fan only when necessary, ensuring optimal cooling and silent operation.

Full Modular Cable Management: Allows for easy cable management and customisation, reducing clutter and improving airflow.

Compact Size: Smaller than many power supplies on the market, making it compatible with a wider range of computer cases.

7-Year Warranty: Backed by a 7-year warranty for peace of mind.

Specifications:

Model:
GSK ATX3.1 750W 80 PLUS Gold

Type:
ATX 12V 3.1

Dimensions:
140 (L) x 150 (W) x 86 (H) mm

Modular:
Full-Modular

Warranty:
7 years

Input Voltage:
100V-240V

Input Current:
10A Max

Input Frequency Range:
50Hz-60Hz

PFC:
Active PFC

Power Good Signal:
100-150ms

Protection:
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity:
750W

Operation Temperature:
0-40C

Regulatory:
cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES

Fan:
120mm Silent Fan

Certifications:
80 PLUS Gold

Connections:
1 x 24 (20+4) pin MB
1 x 16 (12+4) pin PCIe 5.1 12VHPWR
2 x 8 (4+4) pin CPU
4 x 8 (6+2) pin PCI-E
8 x SATA
4 x Molex

Box Dimensions:
296 (L) x 203 (W) x 130 (H) mm

Net Weight:
2.62 kg

Gross Weight:
2.84 kg
