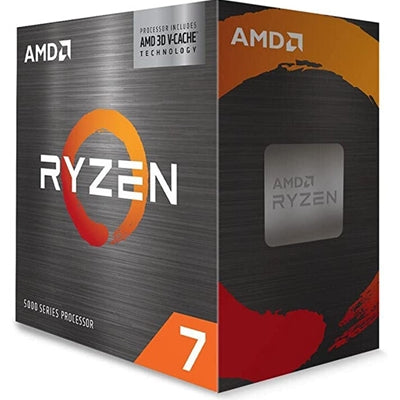

AMD Ryzen 7 5700X3D 3.0GHz 8 Core AM4 Processor, 16 Threads, 4.1GHz Boost
AMD Ryzen 7 5700X3D 3.0GHz 8 Core AM4 Processor, 16 Threads, 4.1GHz Boost
SKU: PRAMD-5700X3D
Regular price
£266.61 GBP
Regular price
Sale price
£266.61 GBP
Unit price
per
Couldn't load pickup availability
Unleash Powerhouse Performance: AMD Ryzen 7 5700X3D 3.0GHz 8 Core AM4 Processor
Elevate your computing prowess with the AMD Ryzen 7 5700X3D processor. Boasting a formidable 3.0GHz base clock and a dynamic 8-core configuration, this AM4 processor sets the stage for exceptional performance. With a robust 16 threads and a swift 4.1GHz boost clock, the Ryzen 7 5700X3D delivers responsive multitasking and an enhanced computing experience.
Efficient Multitasking Mastery: 16 Threads and 4.1GHz Boost
Experience multitasking like never before with the AMD Ryzen 7 5700X3D's 16 threads, effortlessly handling a multitude of tasks. The impressive 4.1GHz boost clock ensures swift responsiveness, making it well-suited for demanding applications, content creation, and seamless multitasking.
Upgrade to the AMD Ryzen 7 5700X3D for a processor that combines raw power and efficiency. Crafted to meet the demands of modern computing, this processor delivers a seamless and immersive user experience, redefining what is possible in high-performance computing.
Specifications
General Specifications
Platform:
Boxed Processor
Market Segment:
Enthusiast Desktop
Product Family:
AMD Ryzen? Processors
Product Line:
AMD Ryzen? 7 Desktop Processors
Consumer Use:
Yes
Commercial Use:
No
Regional Availability:
Global, China, NA, EMEA, APJ, LATAM
Former Codename:
"Vermeer"
Architecture:
"Zen 3"
# of CPU Cores:
8
Multithreading (SMT):
Yes
# of Threads:
16
Max. Boost Clock:
Up to 4.1GHz
Base Clock:
3.0GHz
L1 Cache:
512KB
L2 Cache:
4MB
L3 Cache:
96MB
Default TDP:
105W
Processor Technology for CPU Cores:
TSMC 7nm FinFET
Processor Technology for I/O Die:
12nm (Globalfoundries)
CPU Compute Die (CCD) Size:
74mm
I/O Die (IOD) Size:
125mm
Package Die Count:
2
CPU Socket:
AM4
Socket Count:
1P
Supporting Chipsets:
X570
X470
B550
B450
A520
CPU Boost Technology:
Precision Boost 2
Instruction Set:
x86-64
Supported Extensions:
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB):
Not Included
Max. Operating Temperature (Tjmax):
90C
Launch Date:
1/8/2024
*OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C Support:
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports:
4
Native USB 3.2 Gen 1 (5Gbps) Ports:
0
Native USB 2.0 (480Mbps) Ports:
0
Native SATA Ports:
2
PCI Express Version:
PCIe 4.0
Native PCIe Lanes (Total/Usable):
24 / 20
Additional Usable PCIe Lanes from Motherboard
AMD X570
16x Gen 4
AMD X470
2x Gen 3
8x Gen 2
NVMe Support:
Boot, RAID0, RAID1, RAID10
System Memory Type:
DDR4
Memory Channels:
2
Max. Memory:
128GB
System Memory Subtype:
UDIMM
Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support:
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics:
No
Graphics Model:
Discrete Graphics Card Required
