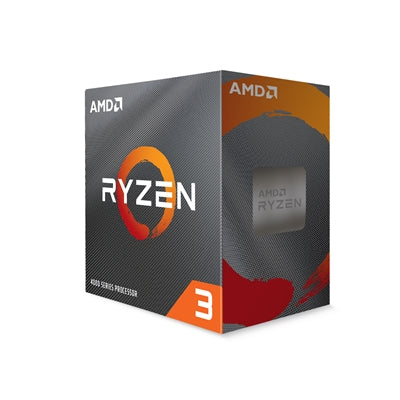

AMD Ryzen 3 4100 3.8GHz 4 Core AM4 Processor, 8 Threads, 4.0GHz Boost

GAME WITH CONFIDENCE. Must-have Zen 2 performance for every gamer. Easy on the wallet, tough on opponents.

BUILD WITH CONFIDENCE
Not only are these processors drop-in ready on AMD 500, 400 and select 300 series motherboards with a simple BIOS update, you can easily tweak and tune your processor with AMD Ryzen Master and AMD StoreMI.

AMD RYZEN TECHNOLOGIES
All AMD Ryzen 4000 Series processors come with the full suite of AMD Ryzen technologies designed to elevate your PC?s processing power including Precision Boost 2 and Precision Boost Overdrive.

AMD WRAITH STEALTH COOLER INCLUDED
AMD has upped the ante with the premium, low-profile Wraith Stealth cooler. This cooler features near-silent acoustics and capable thermal performance.

PRECISION BOOST 2
Precision Boost 2 automatically raises processor frequencies for supercharged performance, always watching temperature and power consumption to intelligently deliver high quality results for your PC.

AMD StoreMI
AMD StoreMI technology is the fast and easy way to expand and accelerate the storage in a desktop by combining the speed of an SSD with the capacity of an HDD.

AMD RYZEN MASTER
Use AMD Ryzen Master with your AMD Ryzen desktop processor to easily personalize performance.


Specifications

Platform
Desktop

Market Segment
Mainstream Desktop

Product Family
AMD Ryzen? Processors

Product Line
AMD Ryzen? 3 Desktop Processors

Consumer Use
Yes

Former Codename
"Renoir"

Architecture
"Zen 2"

# of CPU Cores
4

Multithreading (SMT)
Yes

# of Threads
8

Max. Boost Clock
Up to 4.0GHz

Base Clock
3.8GHz

L1 Cache
256KB

L2 Cache
2MB

L3 Cache
4MB

Default TDP
65W

Processor Technology for CPU Cores
TSMC 7nm FinFET

CPU Compute Die (CCD) Size
180mm

Package Die Count
1

Unlocked for Overclocking
Yes

CPU Socket
AM4

Socket Count
1P

Supporting Chipsets
X570
X470
B550
B450
B350
A520
A320

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution
AMD Wraith Stealth

Max. Operating Temperature (Tjmax)
95C

Launch Date
4/4/2022

OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit

USB Type-C Support
Yes

Native USB 3.2 Gen 2 (10Gbps) Ports
4

Native USB 3.2 Gen 1 (5Gbps) Ports
0

Native USB 2.0 (480Mbps) Ports
0

Native SATA Ports
2

PCI Express Version
PCIe 3.0

Native PCIe Lanes (Total/Usable)
24/20

NVMe Support
Boot, RAID0, RAID1, RAID10

System Memory Type
DDR4

Memory Channels
2

Max. Memory
128GB

System Memory Subtype
UDIMM

System Memory Specification
Up to 3200MHz

Max Memory Speed
2x1R - DDR4-3200
2x2R - DDR4-3200
4x1R - DDR4-2933
4x2R - DDR4-2667

ECC Support
No

Integrated Graphics
No

Graphics Model
Discrete Graphics Card Required
