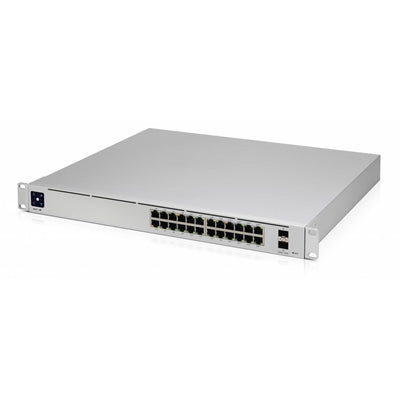

Ubiquiti USW-PRO-24 UniFi Gen2 24 Port Non-PoE Gigabit Network Switch

24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching

UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution ? it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features
(24) Gigabit RJ45 ports
(2) 10G SFP+ ports
Layer 2 and Layer 3 features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller

Specifications

Dimensions
442.4 x 285.4 x 43.7 mm

Weight
3.59 kg with Brackets

Interfaces
Networking - (24) 10/100/1000 RJ45 Ports / (2) 1/10G SFP+ Ethernet Ports
Management - Ethernet In Band

Total Non-Blocking Throughput
44 Gbps

Switching Capacity
88 Gbps

Forwarding Rate
65.472 Mpps

Power Supply
Universal Input - 100-240VAC, 50/60 Hz
USP-RPS DC Input - 11.5VDC, 2.61A

Power Supply
AC/DC, Internal, 36W

Maximum Power Consumption
30W

LEDs
RJ45 Data Ports - Speed/Link/Activity
SFP+ Data Ports - Link/Activity
