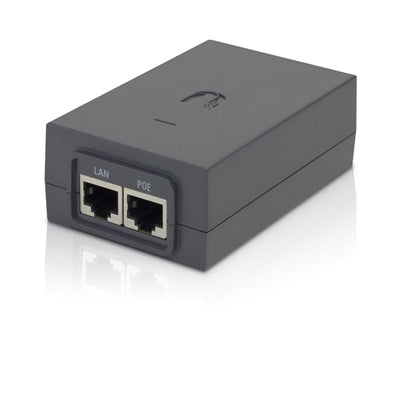

Ubiquiti POE-48-24W-G PoE Gigabit Injector

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
- airFiber
- airMAX
- EdgeMAX
- mFi
- UniFi AP
- UniFi Video / airVision
*Check product specifications to verify PoE compatibility.

Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber?s local network to the WISP network.
The airGateway is available in three models:
- airGateway Standard model with an internal antenna
- airGateway Pro Dual-Band Wi-Fi model with an internal antenna
- airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

Dimensions ( W x H x D )
96 x 62 x 35 mm

Output Voltage
48VDC @ 0.5A

LAN Activity Indicator
No

Gigabit LAN Port
Yes

Remote Reset Capability
No

Reset Button
No

Input Voltage
90-260VAC @ 47-63 Hz

Input Current
0.6A @ 120VAC,
0.4A @ 240VAC

Inrush Current
<65A Peak @ 120VAC,
<130A Peak @ 230VAC

Efficiency
80+%

Output Ripple
1% Max.

Switching Frequency
65 kHz

Line Regulation
1%

Load Regulation
3%

2-Pair Powering
Pins 4, 5 (+) and Pins 7, 8 (-)

Operating Temperature
0 to 40 C (32 to 104 F)

Storage Temperature
-30 to 70C (-22 to 158 F)

Operating Humidity
35 to 95% Noncondensing

AC Connector
IEC-320 C6

Data IN / POE
RJ45 Shielded Socket

Surge Protection
Difference and Common Mode

Clamping Protection
11V Data, 60V Power

Max. Surge Discharge
1500A (8/20 s) Power

Peak Pulse Current
36A (10/1000 s) Data

Shunt Capacitance
<5 pF data

Response Time
<1 ns

Compliance
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
