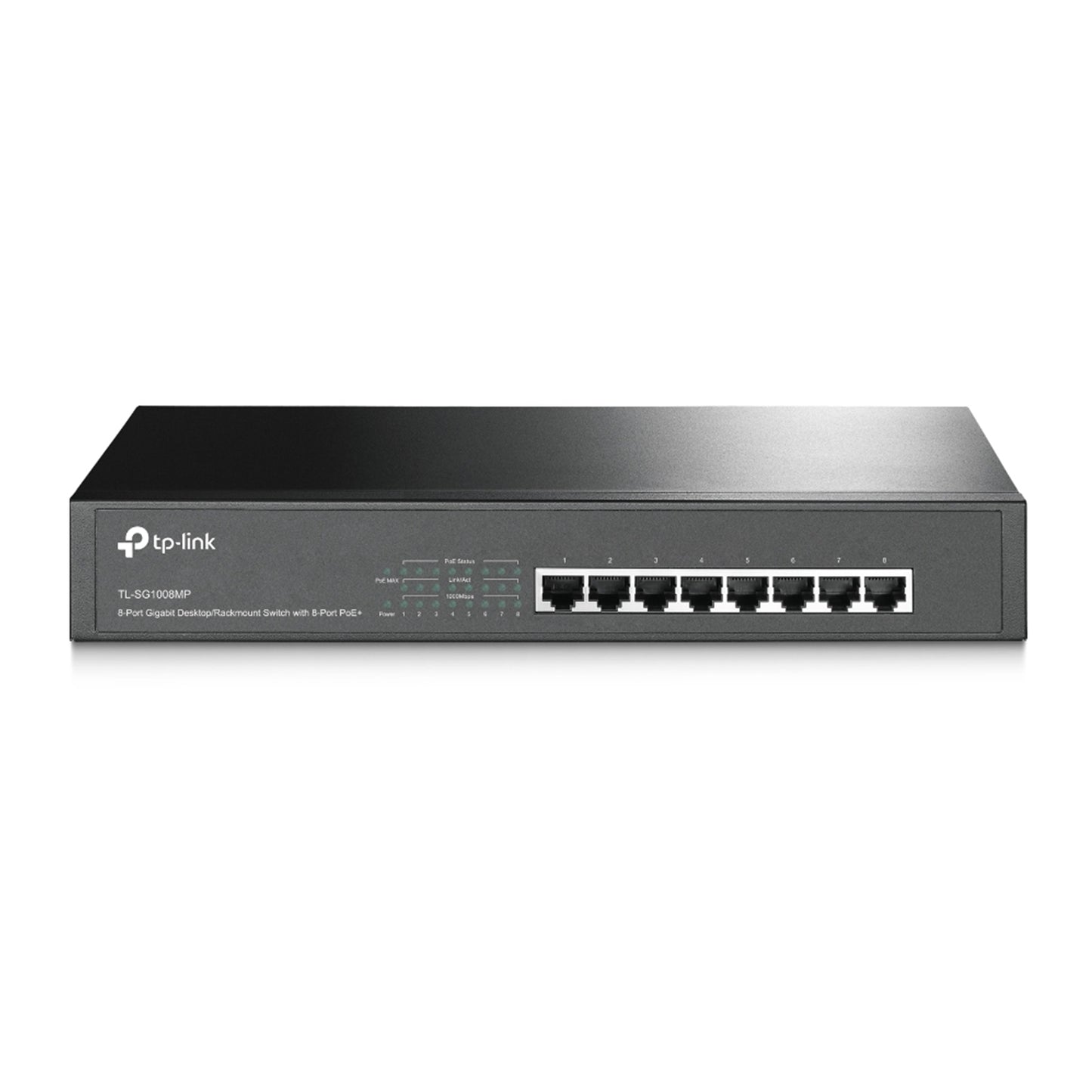

TP-Link TL-SG1008MP 8-Port POE+ Gigabit 10/100/1000 Desktop/ Rackmount Unmanaged Switch

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
8 x 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power consumption
Supports PoE+ standard with total power budget of 153W* and up to 30W per port
Plug and play design, no configuration required



Key Features

What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

HARDWARE FEATURES

Interface
8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity 1

Physical Security Lock
No

Power Supply
100-240VAC, 50/60Hz

Packet Forwarding Rate
11.904 Mpps

PoE+ Ports(RJ45)
Standard: 802.3af/at compliant
PoE+ Ports: 8 Ports
Power Supply: 153W

Mac Address Table
4K

Buffer Size
1.5Mbits

Jumbo Frame
16 KB

Switching Capacity
16Gbps

Dimensions ( W x D x H )
11.6*7.1*1.7 in. (294*180*44 mm)

Mounting
Desktop/Rack Mountable

Max Power Consumption
8.57W(220V/50Hz. no PD connected)
173.65W(110V/60Hz. with 153W PD connected)

Max Heat Dissipation
29.22BTU/h(no PD connected)
592.15BTU/h(with 153W PD connected)

SOFTWARE FEATURES

Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Transfer Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Environment
Operating Temperature: 0?~50? (32?~122?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
