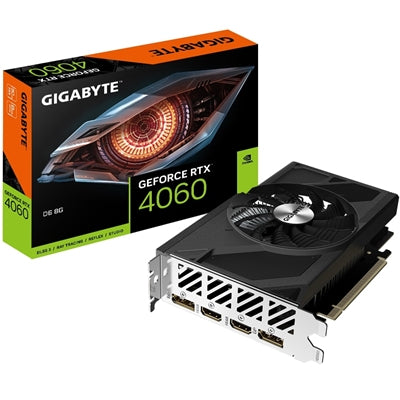

Gigabyte NVIDIA GeForce RTX 4060 D6 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2460 MHz Core Clock, Single Fan, 2x DisplayPorts / 2x HDMI Ports
Gigabyte NVIDIA GeForce RTX 4060 D6 8G Graphics Card, 8GB GDDR6, 3072 CUDA Cores, 2460 MHz Core Clock, Single Fan, 2x DisplayPorts / 2x HDMI Ports
SKU: GRGIG-N4060D6
Prix habituel
£307.99 GBP
Prix habituel
Prix soldé
£307.99 GBP
Prix unitaire
par
Impossible de charger la disponibilité du service de retrait
GeForce RTX 4060 D6 8G
Key Features
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4060
Integrated with 8GB GDDR6 128bit memory interface
90mm unique blade fan
170 mm compact card size
CORE CLOCK
2460 MHz
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors
Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
Up to 2x ray tracing performance
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
COMPACT SIZE FOR EASY INSTALLATION
With a length of 170mm, the graphics card can be easily installed in most small cases.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
Graphics Processing
GeForce RTX 4060
Core Clock
2460 MHz
CUDA Cores
3072
Memory Clock
17 Gbps
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-View
4
Card Size
L=170 W=120 H=40 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 Pin x 1
Output
DisplayPort 1.4a x 2
HDMI 2.1a x 2
Accessories
Quick guide
