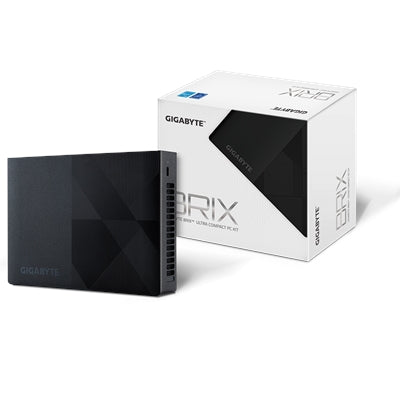

Gigabyte BRIX (GB-BNI3-N305) Barebone Kit, Intel i3 N305 3.0GHz 8 Core CPU, 1 x DDR4 3200 SO-DIMM Slot, 2 x M.2 Slots, Wireless AX & Bluetooth 5.2

Intel Processor and Intel Core i3 N-Series Processors deliver the performance you need at an affordable price to allow you to connect, learn, and play anywhere. The new Intel "Gracemont"CPU microarchitecture built on the latest Intel 7 process features up to 8 efficient cores (?E-cores?), enabling easy, responsive, streamlined experiences. You can scale up to BRIX BNi3 series (Intel Core i3-N305) with an Intel Core i3 N-series platform for a 3.8 GHz turbo frequency and enable Intel Wi-Fi 6E (Gig+), next-gen Intel UHD Graphics, enhanced Image Processing Unit (IPU 6) to enjoy a balance of performance and value for the essential BRIX that?s right for you. With the above technologies, users can experience faster browsing and better productivity to accomplish more. Intel N-series processors harness power and efficiency to support learning, streaming and productivity at an affordable cost.

Performance
Intel Processor and Intel Core i3 N-Series Processor is much more powerful than the prior generation. The all-new Intel 7nm manufacturing process and E-core (Efficient Core) architecture, users can benefit not only from the performance boost, but also compute with greater power efficiency. Overall, generational performance improvements are easily 30% or more.

USB Type-C Connector
The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.

Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.

Dimension
163.5 x 116.8 x 28.5 mm
0.54 L

Motherboard Size
154 x 110 mm

CPU
Intel CoreTM i3 Processor N305
CPU 3.0G~3.8G Turbo, 8C/8T Core, 6MB L3 Cache

Memory
1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB

LAN
2.5 GbE LAN (Realtek RTL8125)

Wifi Card
Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz

Graphics
Intel UHD Graphics 1250

Audio
Realtek ALC897

HDMI Resolution (Max.)
HDMI 2.1
Support 4K@60P HDR10

Mini DP Resolution (Max.)
DP 1.4
support 4K@60P HBR2

Storage
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)

Expansion Slots
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi + Bluetooth card)

Front I/O
1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone

Rear I/O
2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V/4.74A, 90W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS
Win11 64 bit

Environment
System Environment Operating Temperature: 0C to +35C
System Storage Temperature: -20C to +60C
